Description
VOX / Scrambler (Invert Voice)/Frequency Reverse
Frequency Range : VHF: 136-174 MHz | UHF: 400-470 MHz
Frequency scan | CTCSS scan
3 different scan types: TO / CO / SE
3-color LCD backlit display
128 Channel Memory
Built-in 50 CTCSS and 104 DCS
Wide (25KHz) and narrow (12.5KHz) channels; Spacing is programmable with separate channels
Direct frequency input via keypad
VOX built-in
Sound alarm
PC Software Programmable
Priority scan function
Power adjustment: High/Low
Switching between channels /VFO
Display channel + Frequency mode
Squelch level adjustment (0-9)
Busy channel lockout
Keypad lock
Reverse frequency function
Channel steps 5k / 10k / 6.25k / 12.5k / 25k program alphanumeric channel names
Self-program
Audio notification
Dimensions 100 x 55 x 32mm (excluding antenna)
Weight 220g (with battery)
Frequency Range : VHF: 136-174 MHz | UHF: 400-470 MHz
Frequency scan | CTCSS scan
3 different scan types: TO / CO / SE
3-color LCD backlit display
128 Channel Memory
Built-in 50 CTCSS and 104 DCS
Wide (25KHz) and narrow (12.5KHz) channels; Spacing is programmable with separate channels
Direct frequency input via keypad
VOX built-in
Sound alarm
PC Software Programmable
Priority scan function
Power adjustment: High/Low
Switching between channels /VFO
Display channel + Frequency mode
Squelch level adjustment (0-9)
Busy channel lockout
Keypad lock
Reverse frequency function
Channel steps 5k / 10k / 6.25k / 12.5k / 25k program alphanumeric channel names
Self-program
Audio notification
Dimensions 100 x 55 x 32mm (excluding antenna)
Weight 220g (with battery)

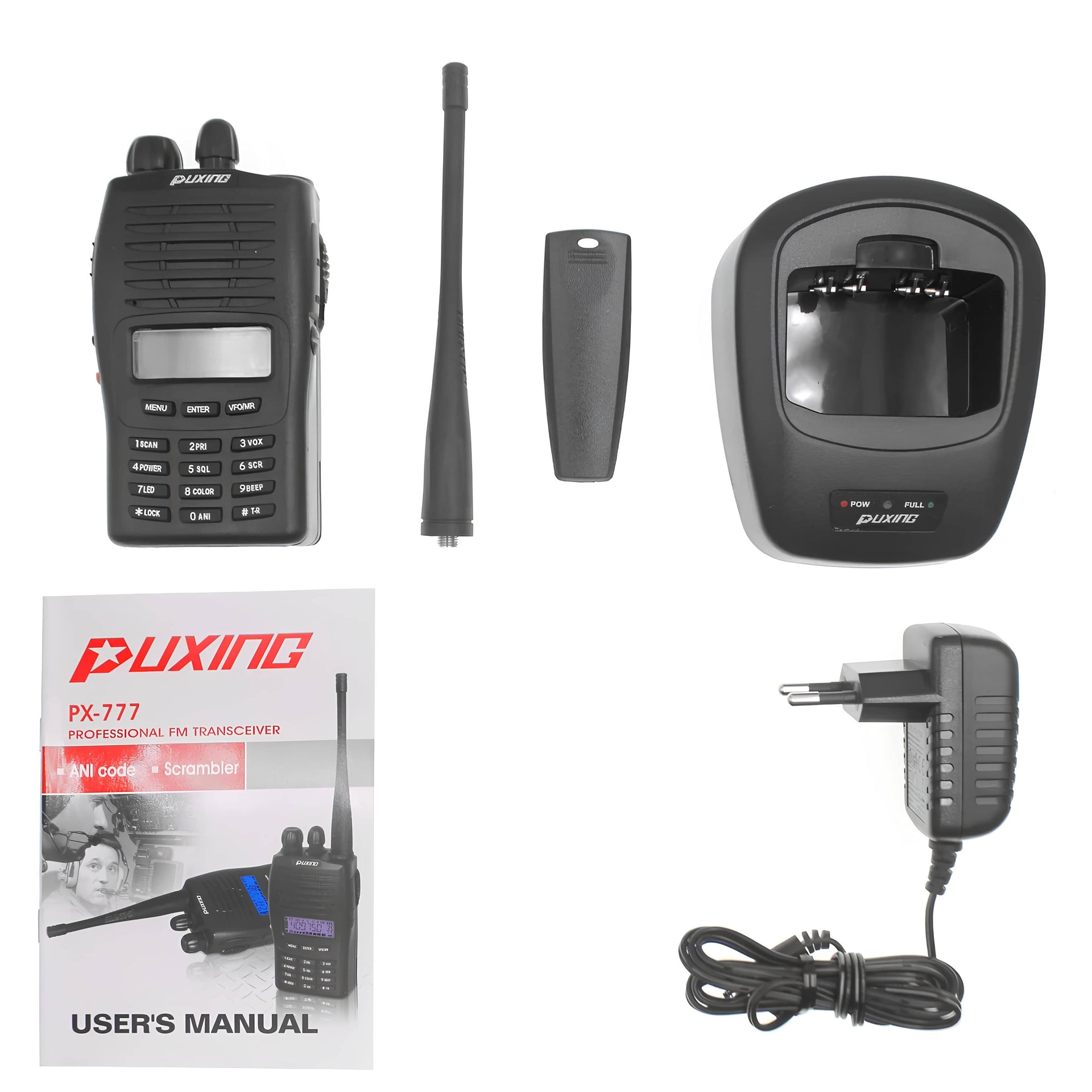

Package includes:

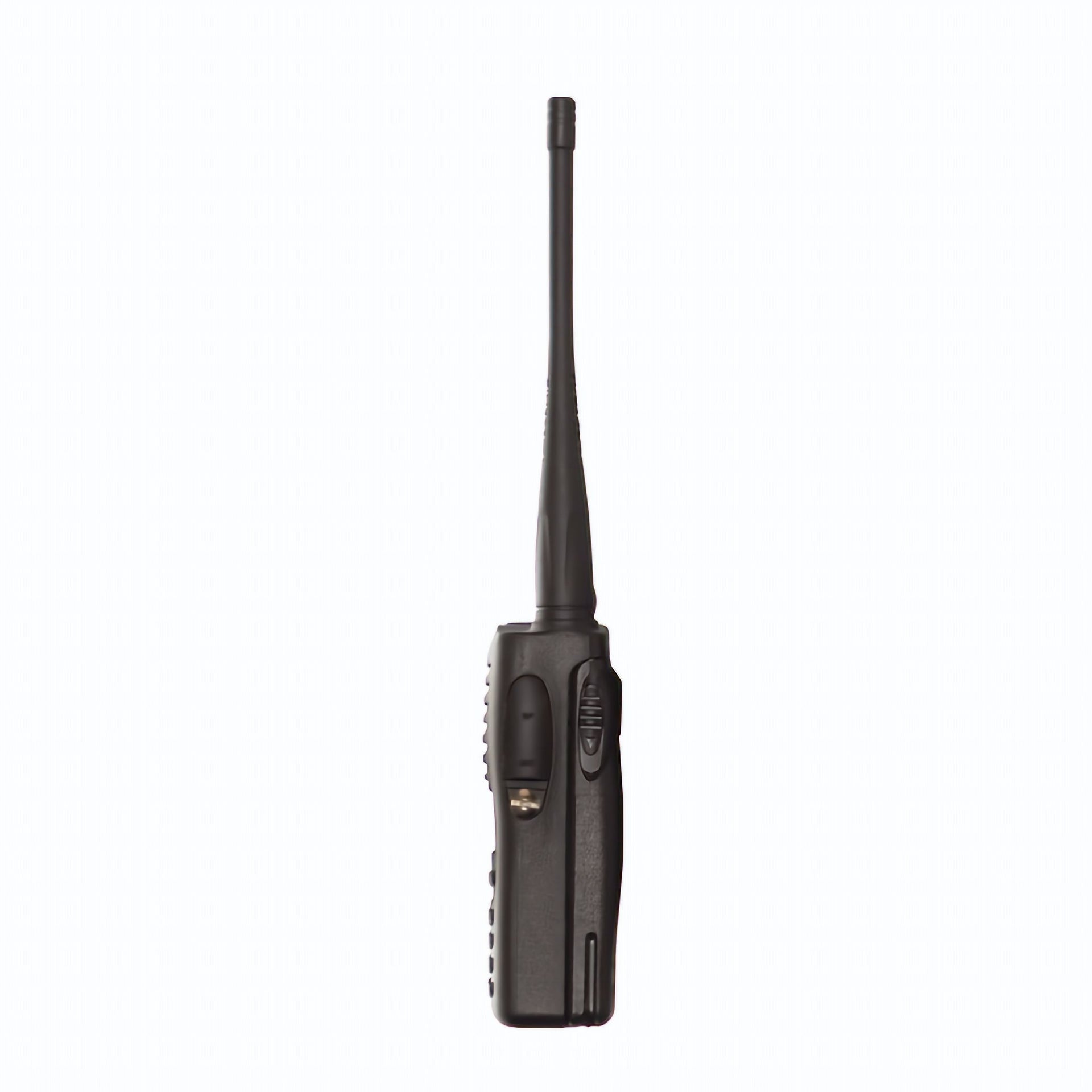

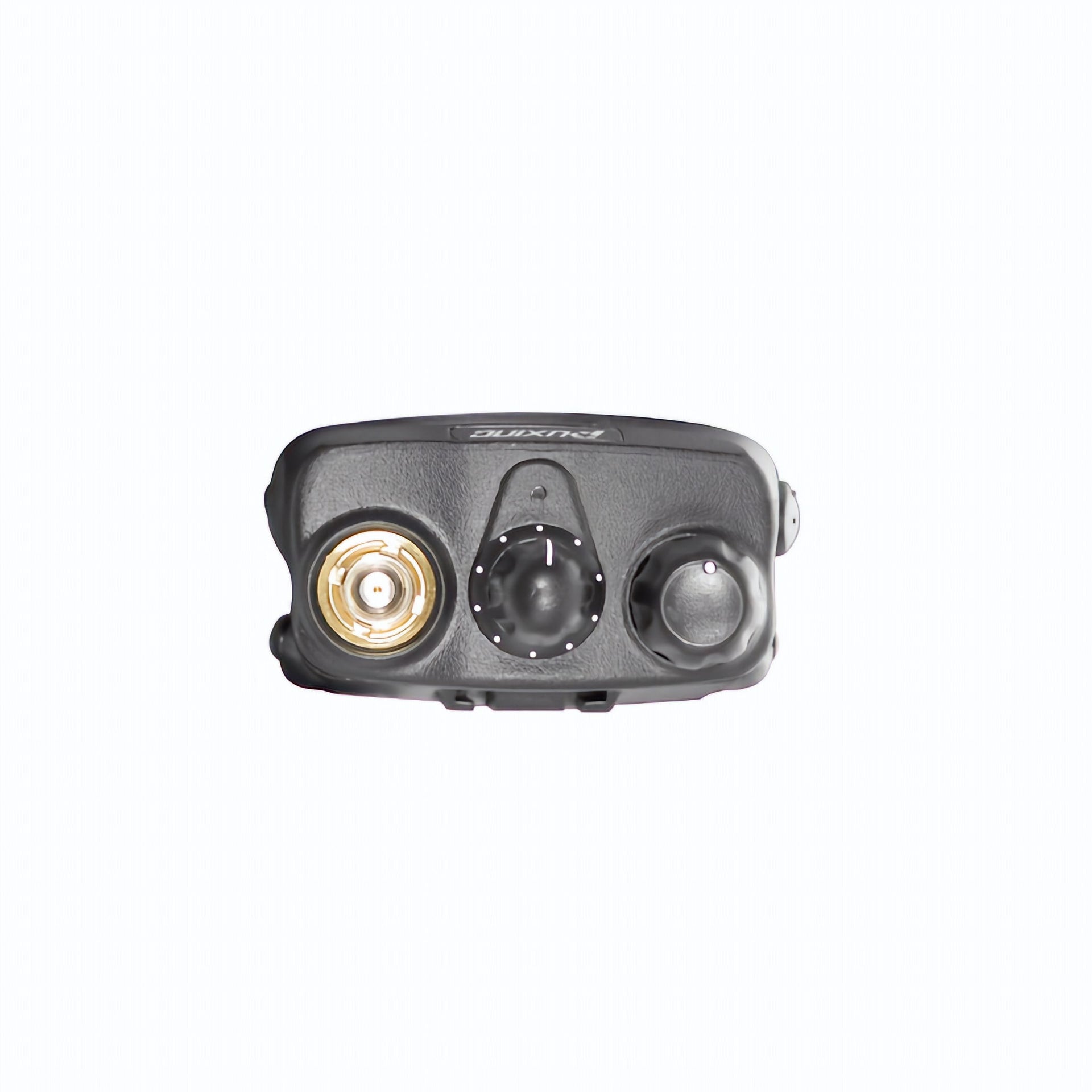

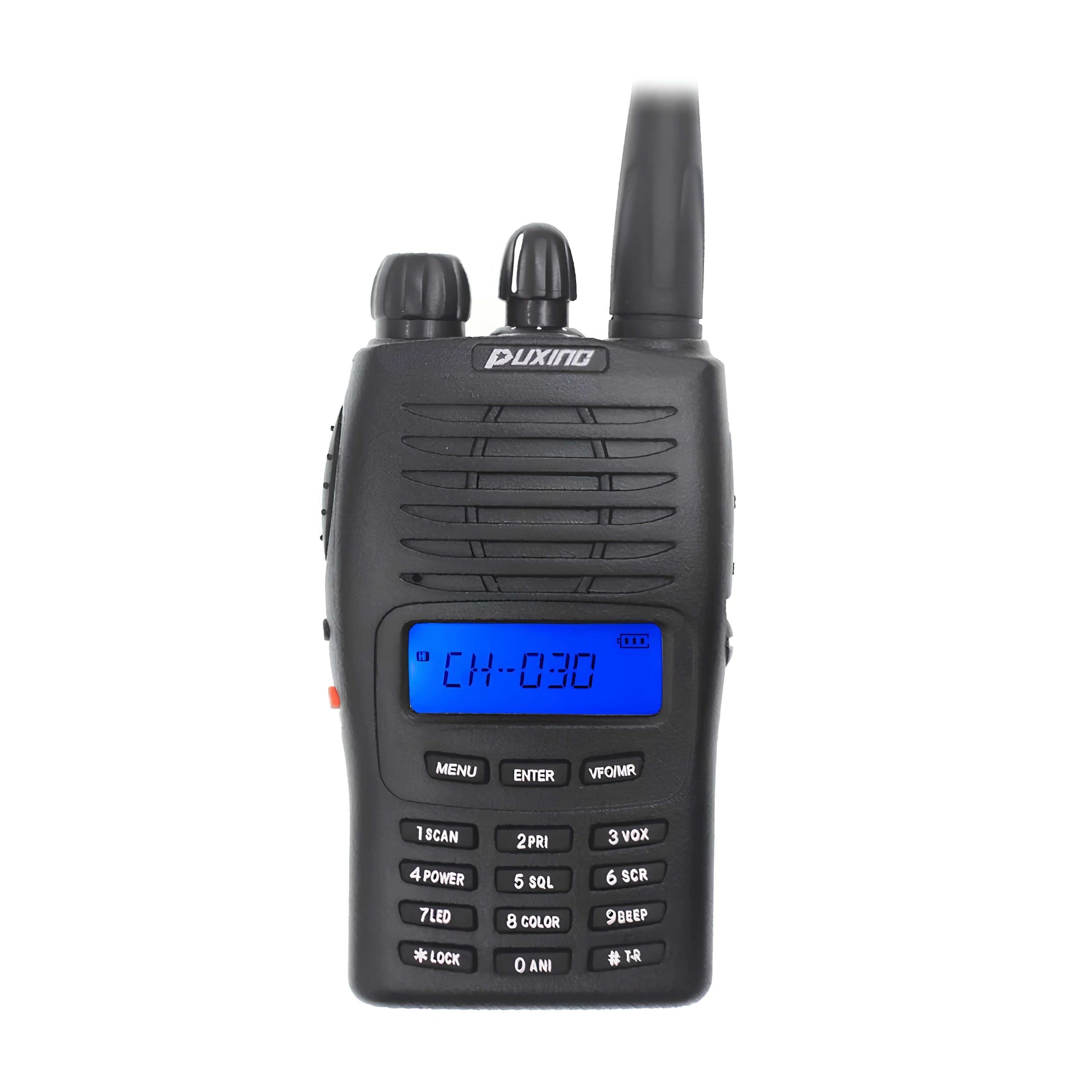

1× PX-777 UHF Radio
1× SMA-F Antenna
1× PB-72L 200mAh battery pack

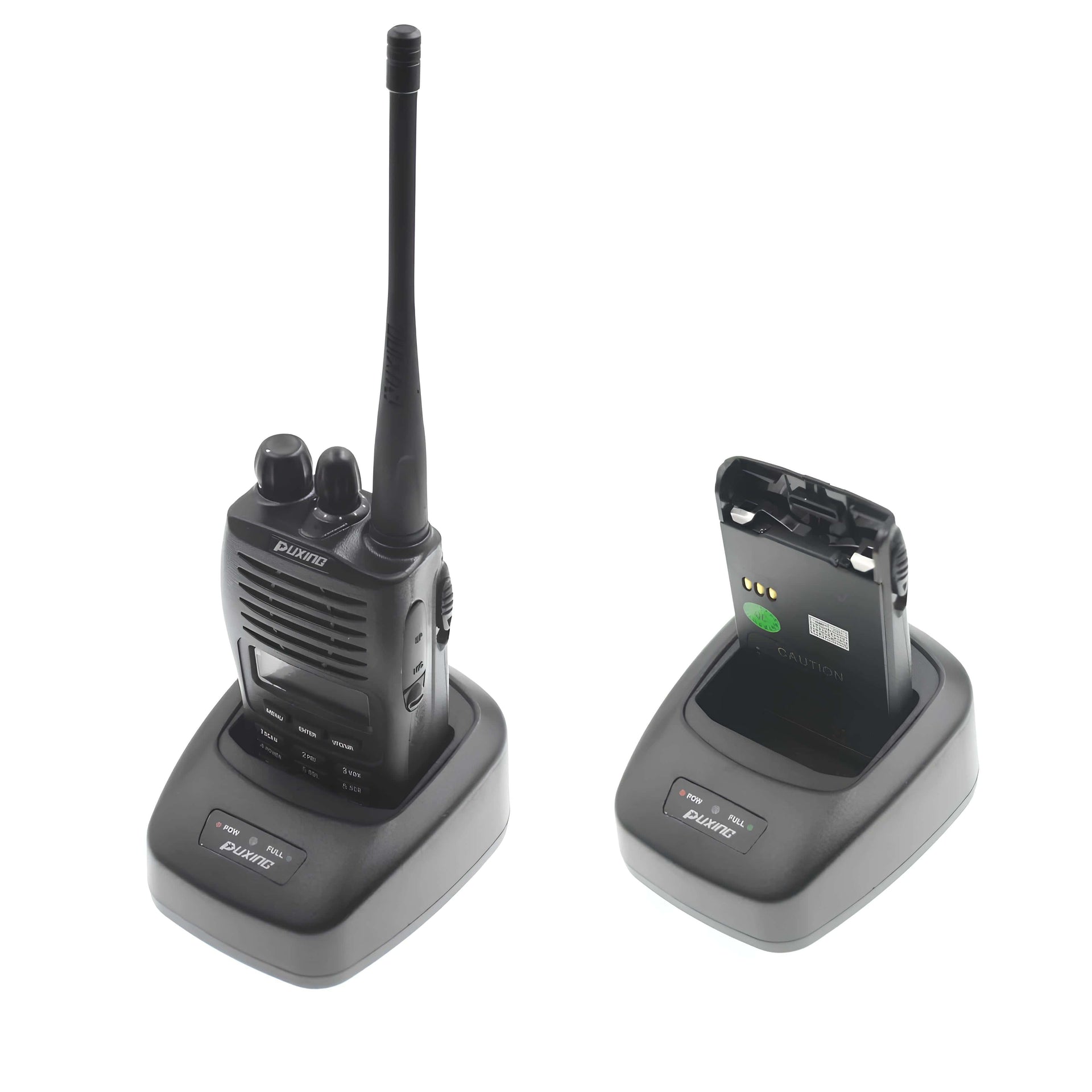

1× Desktop Charger with AC Adapter
Price is for Minimum Order Quantity of 1,000 Units only.
Technical Data
- Sensitivity < 0.20KV
- Selectivity: 65dB
- Intermodulation Rejection: 60dB AF Output: 500mW Standby Current: 35mA
- Power Output: VHF5W/UHF4W
- Modulation Type: F3E Spurious
- Emission < -65dB Transmit
- Current: 1300mA/750mA Max.
- Deviation: ±5kHz Modulation
- Distortion < 5% Frequency
- Stability: ±2.5ppm
- Operating voltage: DC 7.2v
- Operating mode: Single / semi-duplex
- Antenna impedance 50 Ω
Transmitter/Receiver
TRANSMITTER
- Frequency Stability: ±2.5ppm
- Modulation Limiting: ±2.5KHz
- Audio Distortion: ≤3%
- Audio Response +1dB~-3dB
- Adjacent Channel Power: ≥70dB/60dB
- Spurious Radiation: ≤7.5uW
- Occupied Bandwidth: ≤16KHz
- Channel Spacing: 25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band)
- Phase-locked Step: 5KHz,6.25KHz
- Operating Voltage: 7.4 V DC
- Frequency Stability: ±2.5ppm
- Operating Temperature: -20°C +55°C
RECEIVER
- RF Sensitivity: ≤0.2μV
- Audio distortion: ≤3%
- Audio Response: +2~-10dB
- Adjacent Channel Selectivity: ≥60dB
- Intermodulation Rejection: ≥65dB
- Spurious Rejection: ≥70dB
- Blocking: ≥80dB
- Hum & Noise: -45dB
- Audio Output: 500mW
Additional Information
Price is for minimum order quantity of 1,000 radio sets.
Price may vary according to quantity, shipping, handling and market devaluation factors.
Please contact us for the updated cost matrix that will fit your budget.
